1. What Is a Heating Tube Flange

A Heating Tube Flange is a mechanical mounting base or connection plate used to install one or more electric heating tubes into a vessel, tank, pipeline, or heating chamber. The flange provides:

• A secure mechanical fixing point

• A sealing surface between the heating assembly and equipment wall

• Support for multiple heating tube elements

• Pressure retention in closed systems

• Easier removal and maintenance of heating elements

In simple terms, the Heating Tube Flange is the part that allows an electric heating tube assembly to be safely integrated into an industrial heating system.

A typical Heating Tube Flange is found in:

• Electric immersion heaters

• Flanged heating elements

• Boiler heaters

• Tank heating systems

• Process liquid heating equipment

• Thermal oil heating systems

• Water storage heating systems

• Industrial reactors

2. Why Heating Tube Flange Matters in Industrial Heating Systems

Without a proper Heating Tube Flange, an electric heating tube may not be safely installed, sealed, or maintained. The flange is essential because it affects:

• Mechanical stability

• Leak prevention

• Pressure resistance

• Serviceability

• Heat transfer efficiency

• Long term reliability

In industrial systems, even a high-quality heating element can fail prematurely if the flange connection is poorly designed. A well-designed Heating Tube Flange improves:

• Equipment uptime

• Safety performance

• Maintenance efficiency

• Compatibility with tanks and vessels

• Thermal process stability

Because of this, the Heating Tube Flange is not a minor accessory. It is a core structural and functional part of the heating assembly.

3. Main Functions of a Heating Tube Flange

The Heating Tube Flange performs several important roles:

3.1 Mechanical Mounting

It anchors the heating tube assembly to the vessel wall or mounting port.

3.2 Sealing

It creates a sealed interface to prevent water, oil, steam, or process fluid leakage.

3.3 Structural Support

It supports the weight and geometry of single or multiple heating tubes.

3.4 Pressure Containment

In pressurized systems, the flange helps maintain system integrity.

3.5 Service Access

It allows technicians to remove and replace the heating element more easily.

3.6 Standardized Interface

It provides a repeatable connection standard for tanks, boilers, and process equipment.

4. Heating Tube Flange Structure and Core Components

A standard Heating Tube Flange Assembly often includes the following parts:

A Heating Tube Flange may support:

• Single-tube heating element

• U-shaped tube assembly

• Multi-loop heating bundle

• High watt density element group

• Low surface load element configuration

5. Common Materials Used for Heating Tube Flange

Material selection is one of the most important design factors for a Heating Tube Flange.

5.1 Stainless steel heating tube flange

Common grades:

• SS304

• SS316

• SS321

• SS310S (high temperature applications)

Advantages:

• Strong corrosion resistance

• Good temperature stability

• Suitable for water, steam, mild chemicals, food process systems

5.2 Carbon Steel Heating Tube Flange

Advantages:

• Cost-effective

• Strong mechanical properties

• Good for non-corrosive or controlled industrial fluids

Limitations:

• Lower corrosion resistance than stainless steel

• May require coating or protective treatment

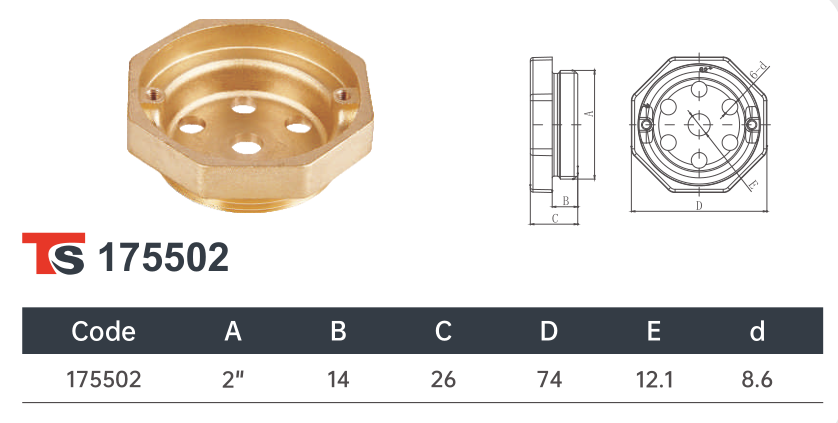

5.3 Brass Heating Tube Flange

Advantages:

• Good machinability

• Good corrosion resistance in water systems

• Common in smaller heating units and water heating applications

5.4 Copper Alloy Options

Used in certain thermal and conductive environments where compatibility matters.

5.5 Titanium or Special Alloy Heating Tube Flange

Used for aggressive media such as:

• Chlorides

• Seawater

• Strong chemical solutions

• High-corrosion industrial environments

6. Types of Heating Tube Flange by Mounting Design

There are several structural forms of Heating Tube Flange depending on installation needs.

6.1 Round Flange Heating Tube Flange

The most common type.

Applications:

• Tanks

• Water heaters

• Boilers

• Storage vessels

6.2 Square Flange Heating Tube Flange

Often used where mounting surfaces are flat or rectangular.

6.3 Oval Flange Heating Tube Flange

Used in compact equipment or special process vessel openings.

6.4 Bolt-On Heating Tube Flange

Installed with bolts and gasket.

Advantages:

• Easy removal

• Good maintenance access

• Common in industrial tanks

6.5 Welded heating tube flange

Welded directly to the equipment shell or nozzle.

Advantages:

• Strong permanent mounting

• Better for custom systems

6.6 Threaded Adapter with Flange Plate

A hybrid solution used in some compact heaters.

7. Types of Heating Tube Flange by Application

Different industries use different Heating Tube Flange styles.

8. Typical Specifications of a Heating Tube Flange

Below is a generalized specification overview for a Heating Tube Flange. Actual values vary by application.

9. Standard Technical Parameter Table

This is a generic industry reference table for a Heating Tube Flange used in electric immersion heating systems.

10. How a Heating Tube Flange Works

A Heating Tube Flange works by creating a safe connection point between the heating element and the vessel:

1. The heating tubes are mechanically fixed to the flange.

2. The flange is aligned with a tank opening, nozzle, or mounting port.

3. A gasket or sealing element is placed between the flange and mating surface.

4. Bolts or welding secure the flange in position.

5. Electrical power is applied to the heating tubes.

6. The heating tubes transfer heat into the fluid medium.

7. The flange keeps the assembly stable, sealed, and serviceable.

This design allows the heating element to be removed without replacing the entire tank or vessel.
