1. What Is a Heating Tube Flange Fitting

A Heating Tube Flange Fitting is a mounting and sealing connection component used to integrate one or more electric heating tubes into a vessel, tank, chamber, boiler, or industrial heating system. It serves as the mechanical and sealing interface between the heating element assembly and the process equipment.

In practical terms, the Heating Tube Flange Fitting is the part that allows an electric tubular heater to be securely installed into the wall of a container or process system while maintaining:

• Structural support

• Leak resistance

• Pressure containment

• Proper immersion depth

• Easier serviceability

Unlike a simple threaded connector, a Heating Tube Flange Fitting typically provides a larger sealing area, stronger support for multi-tube assemblies, and better suitability for medium to high power industrial heating applications.

Common systems that use a Heating Tube Flange Fitting include:

• Electric immersion heaters

• Water heater assemblies

• Boiler auxiliary heaters

• Oil tank heating systems

• Chemical process heaters

• Industrial hot water systems

• Heat exchanger support heaters

• Thermal storage tank heating systems

2. Why Heating Tube Flange Fitting Is Important

A Heating Tube Flange Fitting is important because it affects the overall performance, safety, and maintainability of an electric heating system.

Without a properly selected Heating Tube Flange Fitting, a heating assembly may experience:

• Leakage at the vessel wall

• Poor alignment of heating tubes

• Reduced mechanical stability

• Seal failure under temperature cycling

• Difficult maintenance access

• Lower long-term reliability

In industrial environments, even a high-quality heating tube can fail early if the fitting is not compatible with the operating conditions. The Heating Tube Flange Fitting directly influences:

• Equipment uptime

• Maintenance intervals

• Thermal efficiency

• Safety under pressure

• Fluid containment integrity

• Ease of replacement

This is why the Heating Tube Flange Fitting is often treated as a key design element rather than a secondary accessory.

3. Main Functions of a Heating Tube Flange Fitting

A Heating Tube Flange Fitting performs multiple critical functions in electric heating assemblies.

3.1 Mounting Function

It securely fixes the heating tube assembly to the tank, vessel, or heating chamber.

3.2 Sealing Function

It provides a controlled sealing interface to prevent leakage of water, oil, glycol, chemicals, or process liquids.

3.3 Support Function

It supports the weight, spacing, and geometry of one or more electric heating tubes.

3.4 Pressure Retention

In closed systems, the Heating Tube Flange Fitting helps maintain internal pressure integrity.

3.5 Service Access

It allows easier removal and replacement of the heating element compared with permanent welded solutions.

3.6 Standardized Connection

It creates a repeatable connection platform for maintenance, retrofit, and equipment design consistency.

4. Core Structure of a Heating Tube Flange Fitting

A typical Heating Tube Flange Fitting may include the following parts:

Depending on the design, the Heating Tube Flange Fitting can support:

• Single tubular heater

• U-shaped heating tube

• Multi-loop electric heater bundle

• Low watt density heater cluster

• High power immersion heater assembly

5. Common Materials for Heating Tube Flange Fitting

Material selection is one of the most important factors when choosing a Heating Tube Flange Fitting.

5.1 Stainless steel heating tube flange Fitting

Common stainless steel grades:

• SS304

• SS316

• SS321

• SS310S

Advantages:

• Excellent corrosion resistance

• Good high-temperature stability

• Suitable for water, steam, food processing, and mild chemicals

• Good long-term durability

5.2 Carbon Steel Heating Tube Flange Fitting

Advantages:

• Strong mechanical properties

• Cost-effective

• Suitable for oil systems and non-corrosive industrial fluids

Limitations:

• Lower corrosion resistance

• May need coating or protective surface treatment

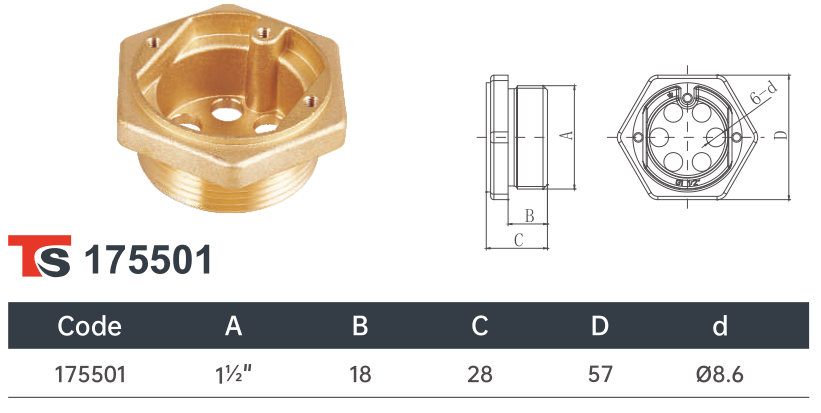

5.3 Brass Heating Tube Flange Fitting

Advantages:

• Good corrosion resistance in water systems

• Easy machining

• Common in smaller heaters and water heating assemblies

5.4 Copper Alloy Options

Used in selected thermal applications where compatibility and conductivity matter.

5.5 Special Alloy Heating Tube Flange Fitting

Used in aggressive media environments such as:

• Chloride-rich fluids

• Seawater-related systems

• Strong acids or alkalis

• High-corrosion chemical processing

6. Types of Heating Tube Flange Fitting

There are several structural variations of Heating Tube Flange Fitting depending on installation style and application.

6.1 Round Heating Tube Flange Fitting

The most common type.

Typical uses:

• Water tanks

• Boilers

• Electric immersion heaters

• Storage vessels

6.2 Square Heating Tube Flange Fitting

Used when equipment has flat mounting surfaces or rectangular openings.

6.3 Oval Heating Tube Flange Fitting

Used in space-limited or special-profile equipment.

6.4 compact Heating Tube Flange Fitting

Designed for small equipment or limited installation depth.

6.5 Heavy Duty Heating Tube Flange Fitting

Used for multi-tube high power heater bundles in industrial tanks and process systems.

7. Heating Tube Flange Fitting by Mounting Method

Different mounting methods affect installation and maintenance performance.

7.1 Bolt On Heating Tube Flange Fitting

Installed using bolts and a gasket.

Benefits:

• Easy to remove

• Suitable for maintenance-heavy systems

• Common in industrial tanks and immersion heaters

7.2 Welded heating tube flange Fitting

Welded to the tank or nozzle.

Benefits:

• Strong permanent connection

• Suitable for custom equipment

• Can improve structural integration

7.3 Threaded Hybrid Heating Tube Flange Fitting

Combines threaded installation with a flange support structure.

Benefits:

• Compact

• Useful for smaller systems

• Simplifies some retrofit applications

7.4 Clamp Style Heating Tube Flange Fitting

Used in some specialty sanitary or quick-access systems.

8. Heating Tube Flange Fitting by Application

Different industries require different Heating Tube Flange Fitting designs.

9. Typical Specifications of Heating Tube Flange Fitting

The following are common industry reference specifications for a Heating Tube Flange Fitting.

10. Standard Technical Parameter Table

Below is a generic industry reference table for a Heating Tube Flange Fitting.
