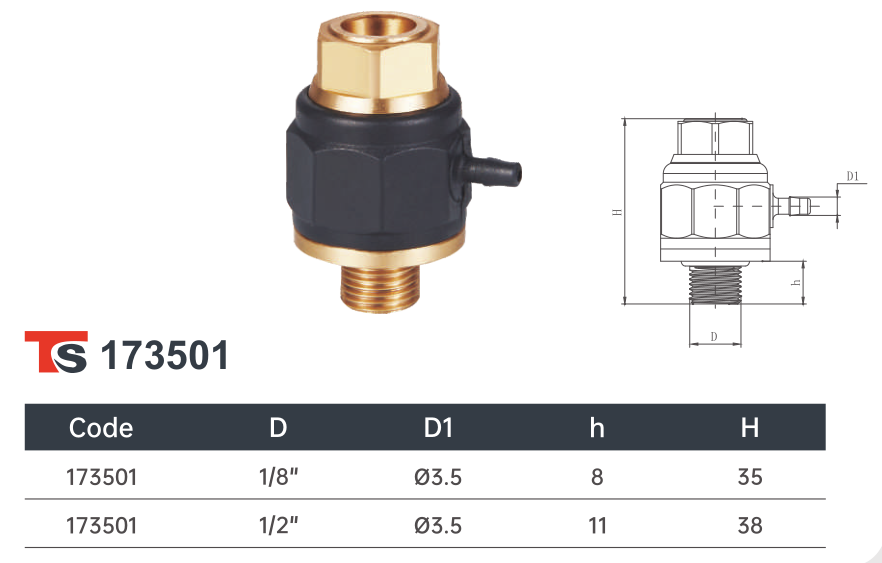

1. What Is a Drain Valve

A Drain Valve is a mechanical valve designed to release liquid, condensate, sludge, trapped fluid, or process residue from a pipeline, vessel, tank, Manifold, boiler, filter, pump housing, or equipment chamber. The primary purpose of a drain valve is to provide a controlled and convenient outlet for removing unwanted or residual media from a system.

In most fluid systems, liquid or condensate naturally collects at low points. Sediment can also settle in tanks or dead zones. Without a drain valve, this retained fluid may lead to:

• Corrosion

• Freezing damage

• Sediment buildup

• Reduced efficiency

• Contamination

• Maintenance difficulty

• Pressure instability

• Equipment wear

A Drain Valve is therefore installed to create an intentional discharge point that allows operators or automatic systems to empty or purge the fluid safely.

2. Why Drain Valve Matters in Fluid Systems

Although a drain valve is often physically small compared to pumps, tanks, heat exchangers, or manifolds, it plays a disproportionately important role in system reliability.

A properly selected Drain Valve helps:

• Remove unwanted water from air systems

• Empty heating loops for maintenance

• Purge sludge from tanks and filters

• Drain boilers during service intervals

• Prevent standing fluid in seasonal shutdowns

• Protect against freeze related cracking

• Improve fluid cleanliness

• Reduce corrosion caused by trapped moisture

• Enable safer inspection and replacement work

In industrial and building systems, the drain valve is frequently the difference between a clean, serviceable installation and a difficult, failure prone installation.

3. Main Functions of a Drain Valve

A Drain Valve may perform one or more of the following functions depending on the system:

Core Functions

• System draining
  Removes bulk liquid from a line, tank, or equipment body.

• Condensate removal
  Releases accumulated water in compressed air, steam, or HVAC systems.

• Sediment discharge
  Flushes dirt, scale, rust particles, or sludge.

• Maintenance isolation support
  Allows components to be emptied before removal or repair.

• Seasonal shutdown protection
  Prevents trapped water from freezing and expanding.

• Cleaning and flushing
  Helps remove contaminants after commissioning or maintenance.

• Pressure assisted purging
  Uses internal pressure to push liquid out through the drain point.

4. Common Drain Valve Types

There are many forms of Drain Valve, depending on the required operation, flow rate, pressure, temperature, and media compatibility.

Main Drain Valve Categories

1. Manual Drain Valve

2. Automatic Drain Valve

3. Ball Type Drain Valve

4. Needle Type Drain Valve

5. Plug Type Drain Valve

6. Petcock Drain Valve

7. Boiler Drain Valve

8. Tank Drain Valve

9. Condensate Drain Valve

10. Angle Drain Valve

11. Bottom Drain Valve

12. Flush Drain Valve

Each version of drain valve is optimized for a different service condition.

5. Drain Valve by Operation Method

5.1 Manual Drain Valve

A Manual Drain Valve is opened by hand using a lever, knob, T handle, handwheel, or screwdriver slot.

Advantages

• Simple construction

• low cost

• Easy to inspect

• Reliable in basic systems

• No power source required

Typical Uses

• Boilers

• Manifolds

• Water tanks

• Hydronic loops

• Filter housings

• Pump casings

5.2 Automatic Drain Valve

An Automatic Drain Valve discharges fluid without manual intervention, usually based on time, level, float action, pressure differential, or sensor control.

Advantages

• Reduces labor

• Prevents condensate accumulation

• Improves continuous operation

• Useful for unattended systems

Typical Uses

• Air compressors

• Air receivers

• Refrigeration systems

• Condensate separators

• Industrial process equipment

5.3 Semi Automatic Drain Valve

This type of Drain Valve may require partial manual action or trigger under limited conditions, combining convenience with simpler construction.

6. Drain Valve by Connection Type

The connection style affects installation compatibility, sealing performance, and maintenance access.

Common Drain Valve Connection Types

• Threaded drain valve

• Flanged Drain Valve

• Compression Drain Valve

• Weld End Drain Valve

• Socket Weld Drain Valve

• Hose Barb Drain Valve

• Push Fit Drain Valve

• Union End Drain Valve

Table: Drain Valve Connection Type Comparison

7. Drain Valve by Material

Material selection is one of the most important decisions for any Drain Valve because it affects corrosion resistance, pressure capacity, temperature tolerance, and media compatibility.

Common Drain Valve Materials

• Brass

• Stainless Steel

• Carbon Steel

• Bronze

• PVC

• CPVC

• PP or PVDF

• Cast Iron

• Ductile Iron

• Aluminum (special applications)

Table: Drain Valve Material Comparison

8. Drain Valve by Seal and Seat Design

The internal sealing design determines how the Drain Valve opens, closes, and resists leakage.

Common Seal Designs

• Soft seat drain valve
  Uses PTFE, EPDM, NBR, FKM, or similar elastomeric or polymer seats.

• Metal seat drain valve
  Used for higher temperature or abrasive conditions.

• Packing sealed stem
  Common in older or industrial designs.

• O ring sealed drain valve
  Popular for compact and leak resistant small valves.

Typical Seal Materials

• PTFE

• EPDM

• NBR

• FKM

• Silicone

• Graphite

• Metal to metal

9. Drain Valve Technical Specification Table

Below is a general industry reference table for Drain Valve configurations. Actual values vary by design, media, and service class.

Table: Typical Drain Valve Specifications

10. Typical Drain Valve Size Range

The most common Drain Valve sizes depend on the system volume, drainage speed required, and the size of the equipment being emptied.

Common Small System Sizes

• 1/8 inch

• 1/4 inch

• 3/8 inch

• 1/2 inch

• 3/4 inch

• 1 inch

Common Industrial Sizes

• 1 1/4 inch

• 1 1/2 inch

• 2 inch

• 2 1/2 inch

• 3 inch

• 4 inch

Size Selection Factors

• Volume of retained fluid

• Drain time requirement

• Sediment content

• Risk of clogging

• Available installation space

• Connection compatibility

• Discharge tubing or pipe size
