1. What Is an Air Vent Valve

An Air Vent Valve is a valve designed to remove trapped or accumulated air from liquid-filled piping systems. It is widely used in water circulation, heating, HVAC, hydronic loops, boiler systems, Manifolds, pumping networks, and industrial fluid transfer systems where air can collect at high points or inside equipment.

The main purpose of an Air Vent Valve is to eliminate unwanted air that can interfere with system performance. In fluid systems, trapped air can cause:

• Reduced circulation efficiency

• Flow interruption

• Air locks

• Pressure fluctuation

• Pipe noise

• Pump performance loss

• Uneven heating or cooling

• Increased corrosion risk

• Higher maintenance frequency

An Air Vent Valve can be manual or automatic, but in most industrial and HVAC applications, the term often refers to an Automatic Air Vent device that continuously releases small volumes of trapped air during operation.

In simple terms, an Air Vent Valve helps keep liquid systems full of liquid rather than air, which improves efficiency, reliability, and operating stability.

2. Why an Air Vent Valve Is Important

Air in liquid systems is a common issue caused by:

• Initial system filling

• Pressure changes

• Temperature changes

• Dissolved gas release

• Pump startup

• Maintenance shutdowns

• Minor suction side air entry

• Refill operations

Without an Air Vent Valve, trapped air can remain in the system and create performance problems.

Why the Air Vent Valve is important:

• Prevents air pockets from blocking flow

• Improves circulation efficiency

• Supports stable pressure

• Reduces noise in pipes and equipment

• Improves heating and cooling transfer performance

• Helps protect pumps and valves

• Reduces corrosion related to oxygen presence

• Minimizes manual bleeding or venting

• Improves overall system reliability

A properly selected Air Vent Valve is often a small component with a very large impact on system efficiency and maintenance.

3. How an Air Vent Valve Works

The Air Vent Valve typically operates by automatically sensing air inside a chamber and opening a vent path until the air is discharged. Once liquid fills the chamber, the internal mechanism closes to prevent leakage.

Basic operating sequence:

1. Air accumulates in the valve chamber

2. The internal float or mechanism drops as air replaces liquid

3. The vent orifice opens

4. Trapped air is discharged

5. Liquid rises back into the chamber

6. The float or mechanism closes the vent

This cycle can repeat continuously during operation.

Common internal mechanisms:

• Float type mechanism

• Needle and seat vent design

• compact automatic vent assembly

• Pressure-assisted closure design

The Air Vent Valve is designed to vent air while preventing unnecessary liquid loss.

4. Main Functions of an Air Vent Valve

The Air Vent Valve performs several important tasks in fluid systems.

4.1 Removes Trapped Air

Its primary function is to release air that accumulates inside a liquid-filled system.

4.2 Prevents Air Lock

Air pockets can restrict or stop fluid flow. The valve helps prevent this issue.

4.3 Improves Fluid Circulation

Air-free systems circulate more efficiently and predictably.

4.4 Improves Heat Transfer

In heating and cooling systems, removing air improves contact between liquid and heat exchange surfaces.

4.5 Protects Pumps

Air in pump circuits can reduce efficiency and increase wear.

4.6 Reduces Noise

Air in pipes can create gurgling, knocking, and unstable flow sounds.

4.7 Reduces Maintenance

An automatic Air Vent Valve reduces the need for manual venting.

5. Common Types of Air Vent Valve

There are several common types of Air Vent Valve products used in different systems.

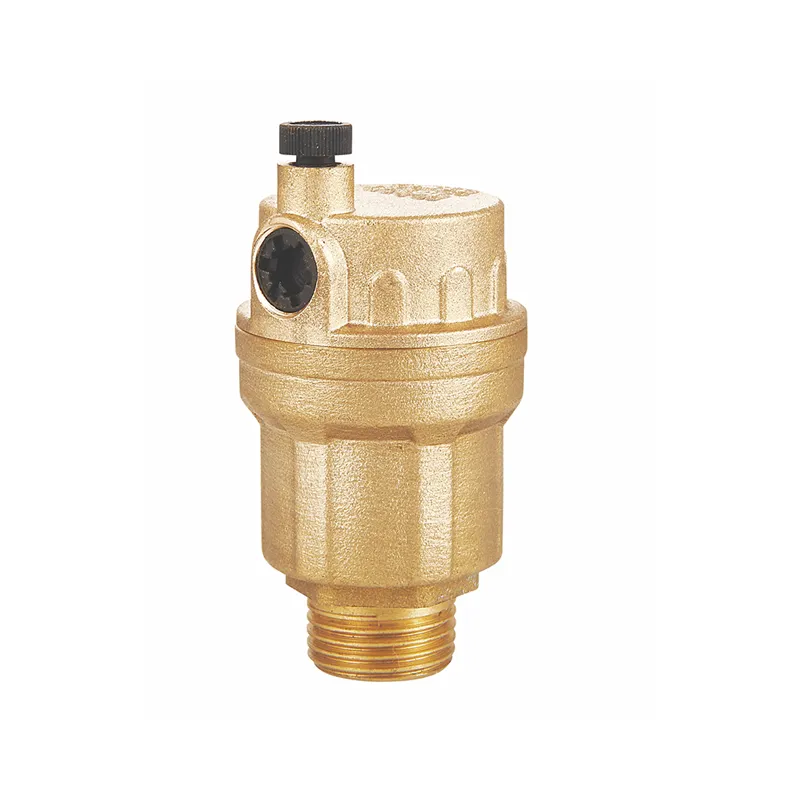

5.1 Automatic Air Vent Valve

This is the most common type. It automatically releases small trapped air volumes during system operation.

Typical applications:

• HVAC systems

• Heating loops

• Boiler circuits

• Manifold assemblies

• Water circulation systems

5.2 Manual Air Vent Valve

A manual version requires an operator or technician to open the valve and release air.

Typical applications:

• Radiators

• Service points

• Maintenance locations

5.3 Float Type Air Vent Valve

Uses a float inside the valve body to control opening and closing based on the liquid level.

Benefits:

• Reliable automatic operation

• Common in HVAC and water systems

• Simple and proven design

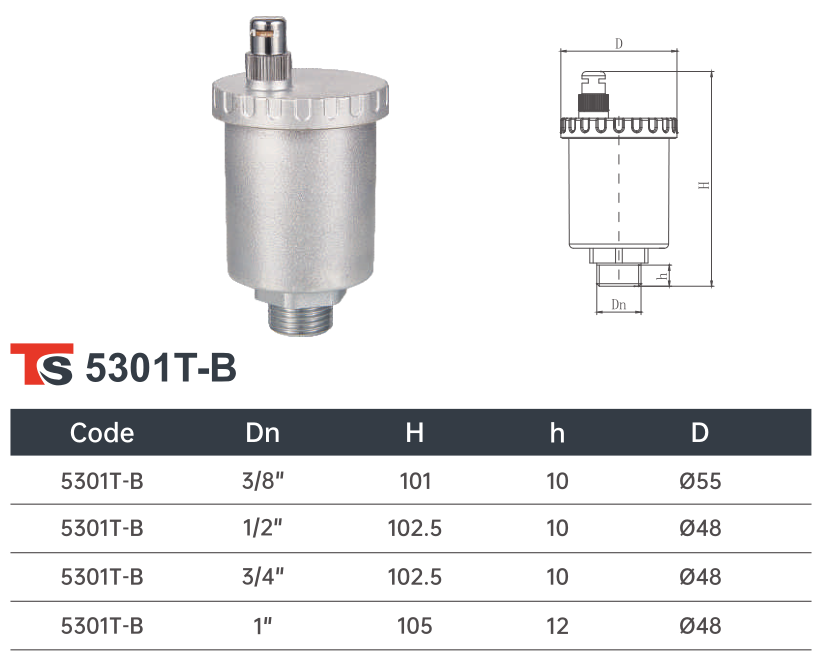

5.4 Compact Air Vent Valve

Small design for boilers, manifolds, and equipment assemblies.

Typical uses:

• Boiler top venting

• Heating manifolds

• Pump groups

• Small hydronic circuits

5.5 Industrial Air Vent Valve

Designed for larger systems or more demanding operating conditions.

Typical uses:

• Utility water lines

• Industrial cooling loops

• Process water systems

• Pump discharge piping

5.6 High Point Air Vent Valve

Installed at the highest point in a pipeline where air naturally accumulates.

Typical uses:

• Long pipelines

• Water transfer systems

• Irrigation systems

• Industrial utility networks

6. Air Vent Valve vs Air Release Valve

The terms Air Vent Valve and Air Release Valve are closely related and often overlap.

General comparison:

For SEO, it is useful to include both terms in the content because search intent often overlaps.

7. Key Features of a High Quality Air Vent Valve

A reliable Air Vent Valve should offer:

• Automatic venting performance

• Tight sealing after air release

• Corrosion resistant body material

• Reliable internal float or vent mechanism

• Compact installation footprint

• Stable operation under pressure changes

• Good compatibility with water and HVAC fluids

• Long service life

• Easy access for maintenance

• Resistance to contamination or scale

• Multiple connection size options

• Standard thread compatibility

These features help ensure dependable long-term performance.

8. Main Advantages of Air Vent Valve

The Air Vent Valve provides important operational benefits.

8.1 Better System Efficiency

Air-free systems circulate liquid more effectively.

8.2 Reduced Noise

Removing trapped air reduces gurgling and unstable flow sounds.

8.3 Improved Heating and Cooling

Heat transfer improves when the system is properly filled with liquid.

8.4 Lower Maintenance Demand

Automatic venting reduces manual bleeding and service time.

8.5 Improved Pump Protection

Removing air helps reduce cavitation risk and flow instability.

8.6 Better Pressure Stability

Air removal helps maintain more consistent hydraulic conditions.

8.7 Longer Equipment Life

Reduced air exposure can help lower corrosion and wear.

9. Common Applications of Air Vent Valve

The Air Vent Valve is used in many systems and industries.

10. Air Vent Valve in HVAC Systems

HVAC systems rely heavily on consistent water circulation.

Common HVAC uses:

• Chilled water loops

• Hot water loops

• Fan coil units

• Air handling unit coils

• Mechanical room headers

• Expansion tank connections

• Coil circuit high points

Benefits in HVAC:

• Better coil efficiency

• Improved circulation

• Reduced pipe noise

• Stable temperature control

• Lower pump stress

• Easier system balancing

An Air Vent Valve is often installed at high points and near separators.
